硅&鍺窗片
Silicon crystal windows are used primarily for light in the infrared region of wavelengths of 6μm or less. It has about 50% transmission in this range from 1.2 to 7µm,we usually add an AR coating to enhance the performance from 3-5µm. it is not suitable for CO2 transmitting optics dut to its absorption. It is useful in systems where weight is a concern.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
Silicon crystal
|
|
|

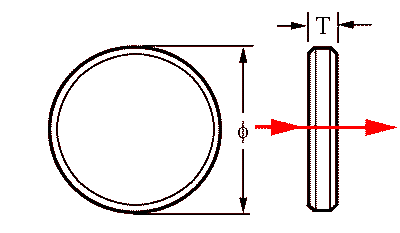

Dimension X×Y(φ):
|
1×1mm~25.4×25.4mm；φ3~φ25.4mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.03mm
|
|
Parallelism:
|
＜1′
|
＜5″
|
|
Clear aperture:
|
85%
|
|
|
Surface quality:
|
MIL20-10
|
|
|
Flatness(per 25.4mm):
|
λ/4@ 632.8nm
|
λ/10@ 632.8nm
|
|
Perpendicularity:
|
＜12′
|
＜3′
|
|
Coating:
|
Specified by customer
|
|
