平凸柱面鏡

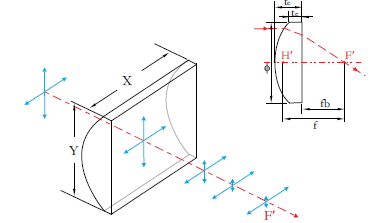

Cylindrical lenses can transform a point image into a line image or changing the height of an image without changing its width or vice versa. it is useful for making laser line generators.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
N-BK7
|
|
|
Diameter X×Y:
|
10×20mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.05mm
|
|
Focus length tolerance:
|
±2%@632.8mm
|
|
|
Surface figure(per 25.4mm):
|
λ@632.8nm
|
λ/2@ 632.8nm
|
|
Surface quality:
|
MIL40-20
|
|
|
Clear aperture:
|
85%
|
|
|
Bevel(face width×45°):
|
0.2~0.4mm or specified by customer
|
|
|
Coating:
|
Specified by customer
|
|
