氟化鎂窗片
MgF2 windows offer superior transmission in wavelengths from 120nm to 7000nm. Particularly, it can be used for excimer & Nd:YAG laser optics. MgF2 is relatively soft and somewhat hygroscopic so polishing, coating and handling are more critical than for Fused Silica windows. The quality of a UV window can be extremely critical, it should be of high purity and polish in order not to affect the optical system.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
MgF2
|
|
|

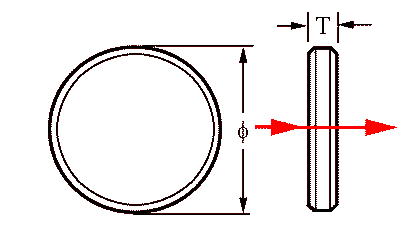

Dimension X×Y(φ):
|
1×1mm~25.4×25.4mm；φ3~φ25.4mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.03mm
|
|
Parallelism:
|
＜1′
|
＜5″
|
|
Clear aperture:
|
85%
|
|
|
Surface quality:
|
MIL20-10
|
|
|
Flatness(per 25.4mm):
|
λ/4@ 632.8nm
|
λ/10@ 632.8nm
|
|
Perpendicularity:
|
＜12′
|
＜3′
|
|
Coating:
|
Specified by customer
|
|
|
Axis orientation tolerance:
|
＜0.1°
|
|
