氟化鈣窗片
CaF2 windows offer superior transmission in wavelengths from vacuum ultraviolet to infrared., they are often used to make windows with high transmittance in a wide rang of spectrum. CaF2 crystal are nonaxial, and they also offer greater resistance to humidity than other crystals.They are particularly useful for IR laser application.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
CaF2
|
|
|

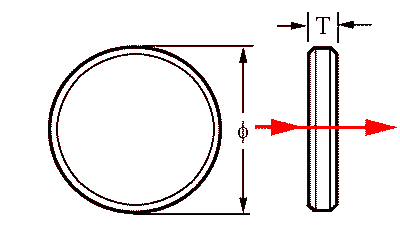

Dimension X×Y(φ):
|
1×1mm~25.4×25.4mm；φ3~φ25.4mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.03mm
|
|
Parallelism:
|
＜1′
|
＜5″
|
|
Clear aperture:
|
85%
|
|
|
Surface quality:
|
MIL20-10
|
|
|
Flatness(per 25.4mm):
|
λ/4@ 632.8nm
|
λ/10@ 632.8nm
|
|
Perpendicularity:
|
＜12′
|
＜3′
|
|
Coating:
|
Specified by customer
|
|
|
Axis orientation tolerance:
|
＜0.1°
|
|
